Hydraulic Breaker
ARTUS hydraulic breaker maximizes impact energy per blow while cutting fuel consumption. Our precision-ground pistons penetrate hard rock and reinforced concrete faster, increasing your daily tonnage and project margins with relentless striking power.
ARTUS units are designed with universal compatibility across all major brands, we can ensure a perfect fit for your Caterpillar, Komatsu, or JCB carriers from day one.
Choosing us gives you a cost-effective, factory-direct solution that delivers OEM-level productivity and rugged reliability on any job site.
ARTUS Product Lineup: Premium Breakers for Sale
ARTUS offers four specialized hydraulic breaker configurations engineered to match specific carrier and site requirements: Box Type (Silenced) for urban noise control, Tower Type (Top) for maximum vertical penetration, Side Type for operational flexibility, and the FRD Series for heavy-duty reliability. Our lineup supports carriers from 0.5 to 120 tons, providing high-impact energy and OEM-level durability for demolition, mining, and infrastructure projects.
Excavator Compatibility:
5-50T
Best Application:
Residential demolition, city infrastructure, and projects in noise-restricted zones like schools or hospitals
Key Advantages:
Features a fully enclosed housing with high-density polyurethane dampeners to minimize noise levels and vibration. This design also provides the ultimate physical protection for the internal cylinder against dust and falling debris.
| Specification | A68/SB40 | A140/SB81 | A155/SB121 | A165/SB131 | A175/SB151 |
| Chisel Diameter | 68mm | 140mm | 155mm | 165mm | 175mm |
| Whole Weight | 320Kg | 1990Kg | 2850Kg | 3300Kg | 4450Kg |
| Oil Flow | 40-60L/min | 120-180L/min | 180-240L/min | 190-260L/min | 200-250L/min |
| Working Pressure | 90-130Bar | 160-220Bar | 180-230Bar | 200-240Bar | 210-240Bar |
| Setting Pressure | 160Bar | 210Bar | 250Bar | 260Bar | 270Bar |
| Working Frequency | 500-990BPM | 350-450BPM | 200-300BPM | 150-300BPM | 120-200BPM |
| Impact Energy | 1020J | 6500J | 10930J | 13200J | 15500J |
| Excavator Class | 5.0-7.5T | 20-25T | 25-30T | 30-36T | 35-40T |
| We offer hydraulic breaker OEM service compatible with all brands and models of excavators, backhoe loaders, and skid steers currently available on the market. All products can be engraved with your company name and logo. Of course, you can opt for our private label option. | |||||
Excavator Compatibility:
0.8-40T
Best Application:
Primary rock breaking in open-pit quarries, deep foundation trenching, and vertical demolition of reinforced concrete structures.
Key Advantages:
The straight-line (Tower) design aligns the impact energy perfectly with the carrier’s boom. This ensures the longest reach and maximum vertical penetration, allowing for high-speed material fracturing in heavy production environments.
| Specification | A68/SB40 | A140/SB81 | A155/SB121 | A165/SB131 | A175/SB151 |
| Chisel Diameter | 68mm | 140mm | 155mm | 165mm | 175mm |
| Whole Weight | 320Kg | 1990Kg | 2850Kg | 3300Kg | 4450Kg |
| Oil Flow | 40-60L/min | 120-180L/min | 180-240L/min | 190-260L/min | 200-250L/min |
| Working Pressure | 90-130Bar | 160-220Bar | 180-230Bar | 200-240Bar | 210-240Bar |
| Setting Pressure | 160Bar | 210Bar | 250Bar | 260Bar | 270Bar |
| Working Frequency | 500-990BPM | 350-450BPM | 200-300BPM | 150-300BPM | 120-200BPM |
| Impact Energy | 1020J | 6500J | 10930J | 13200J | 15500J |
| Excavator Class | 5.0-7.5T | 20-25T | 25-30T | 30-36T | 35-40T |
| We offer hydraulic breaker OEM service compatible with all brands and models of excavators, backhoe loaders, and skid steers currently available on the market. All products can be engraved with your company name and logo. Of course, you can opt for our private label option. | |||||
Excavator Compatibility:
0.5-120T
Best Application:
General construction projects, road reconstruction, and versatile site clearing where operator visibility and maneuverability are key.
Key Advantages:
With a shorter overall length and lower mounting point, the Side Type breaker offers exceptional flexibility in tight spaces. Its open structure allows for the industry’s fastest maintenance access and daily greasing inspections.
| Specification | A68/SB40 | A140/SB81 | A155/SB121 | A165/SB131 | A175/SB151 |
| Chisel Diameter | 68mm | 140mm | 155mm | 165mm | 175mm |
| Whole Weight | 320Kg | 1990Kg | 2850Kg | 3300Kg | 4450Kg |
| Oil Flow | 40-60L/min | 120-180L/min | 180-240L/min | 190-260L/min | 200-250L/min |
| Working Pressure | 90-130Bar | 160-220Bar | 180-230Bar | 200-240Bar | 210-240Bar |
| Setting Pressure | 160Bar | 210Bar | 250Bar | 260Bar | 270Bar |
| Working Frequency | 500-990BPM | 350-450BPM | 200-300BPM | 150-300BPM | 120-200BPM |
| Impact Energy | 1020J | 6500J | 10930J | 13200J | 15500J |
| Excavator Class | 5.0-7.5T | 20-25T | 25-30T | 30-36T | 35-40T |
| We offer hydraulic breaker OEM service compatible with all brands and models of excavators, backhoe loaders, and skid steers currently available on the market. All products can be engraved with your company name and logo. Of course, you can opt for our private label option. | |||||
Excavator Compatibility:
12-50T
Best Application:
High-frequency production tasks and rental fleets that require world-class reliability and 100% interchangeable spare parts.
Key Advantages:
Engineered to premium Japanese performance standards, the FRD Series is built for extreme stability. It offers a perfect balance of striking power and hardware longevity, making it the most trusted choice for heavy-duty long-term operation.
| Specification | HB15G | HB20G | HB30G | HB40G |
| Chisel Diameter | 120mm | 135mm | 150mm | 160mm |
| Whole Weight | 1500Kg | 1790Kg | 2610Kg | 3170Kg |
| Oil Flow | 115-150L/min | 125-160L/min | 155-190L/min | 200-250L/min |
| Working Pressure | 160-180Bar | 160-180Bar | 160-180Bar | 160-180Bar |
| Setting Pressure | 210Bar | 210-230Bar | 240-260Bar | 260-280Bar |
| Working Frequency | 350-700BPM | 350-650BPM | 300-550BPM | 300-500BPM |
| Impact Energy | 2650J | 3695J | 5195J | 10390J |
| Excavator Class | 12-18T | 18-25T | 25-35T | 35-50T |
| We offer hydraulic breaker OEM service compatible with all brands and models of excavators, backhoe loaders, and skid steers currently available on the market. All products can be engraved with your company name and logo. Of course, you can opt for our private label option. | ||||

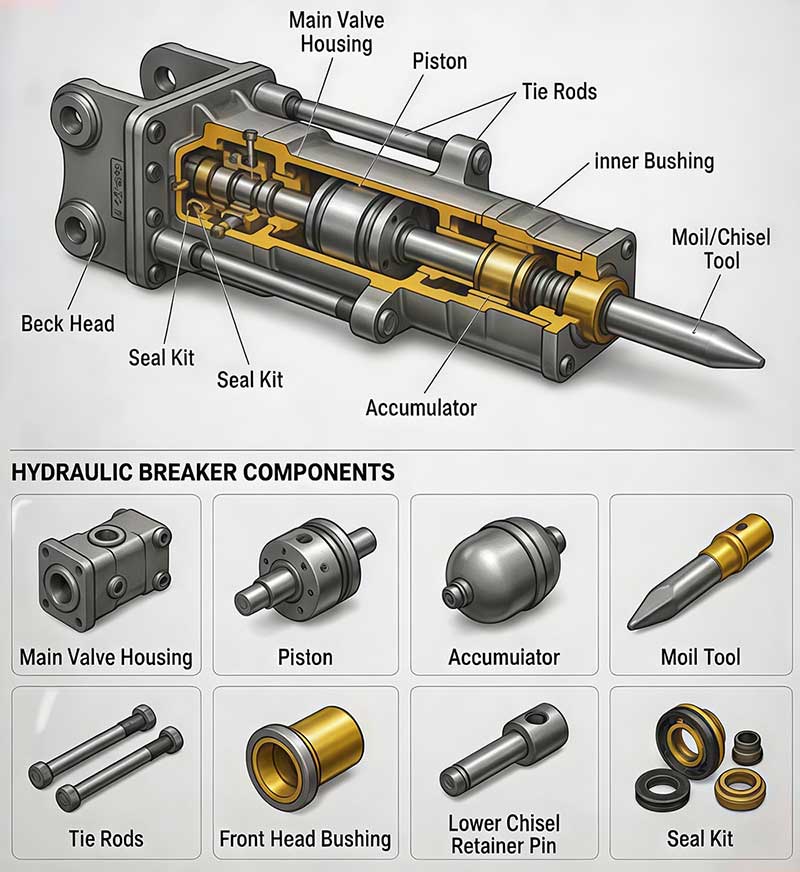

ARTUS Hydraulic Breaker Core Components
The superior performance of an ARTUS hydraulic breaker is determined by its internal heart. We optimize every component for maximum power and minimal wear. From elite metallurgy to micron-level tolerances, here is how the core components of an ARTUS unit deliver the reliability and impact force your job site demands.
| Component Name | Primary Function | ARTUS Technical Advantage |
| Main Valve Housing | Controls hydraulic oil flow and regulates the striking frequency. | Precision-machined to maintain an ultra-stable frequency even as oil temperatures rise, preventing power drops common in lower-quality units. |
| Piston | The central moving part that strikes the chisel to deliver massive kinetic energy. | Forged from premium alloy steel and ground to micron-level tolerances for a perfect cylinder fit, ensuring maximum energy transfer and harder strikes. |
| Accumulator | Stores hydraulic energy and absorbs pressure spikes to assist the downward strike. | Equipped with a high-durability diaphragm that ensures consistent power while acting as a superior buffer to protect your excavator’s hydraulic pump. |
| Moil Tool | The frontline tool that directly fractures rock, stone, and reinforced concrete. | Undergoes proprietary multi-stage heat treatment, creating a “hard-shell, tough-core” structure for extreme wear resistance and snapping prevention. |
| Tie Rods | Holds the back head, cylinder, and front head together under massive tension. | Manufactured from high-tensile steel with reinforced threading to prevent loosening and structural failure during prolonged high-intensity operation. |
| Front Head Bushing | Supports and guides the chisel tool, reducing internal friction and body wear. | Utilizes specialized high-wear-resistant alloys that prolong chisel lifespan and prevent front-head misalignment during heavy-duty tasks. |
| Lower Chisel Retainer Pin | Secures the chisel tool in place while allowing it to move vertically. | Heat-treated for extreme shear strength to prevent accidental tool loss and designed for rapid, “no-fuss” onsite tool replacement. |
| Seal Kit | Maintains critical internal pressure and prevents expensive hydraulic oil leaks. | Premium-grade seals engineered for extreme temperatures and high-frequency friction, eliminating oil leakage and reducing maintenance needs. |
Note: Beyond these core components, ARTUS provides a full range of additional spare parts for fast and convenient replacement. Please contact us today to purchase or request a customized parts quote.
Core Advantages of ARTUS Hydraulic Breaker
Optimized Impact Energy Efficiency
ARTUS hydraulic breaker is engineered with a precision-ground piston and cylinder system that minimizes internal friction. This optimization ensures that nearly 100% of the carrier’s hydraulic energy is converted into raw destructive power. By focusing on superior energy transfer, our units allow operators to break harder rock and reinforced concrete significantly faster than standard market alternatives, increasing your daily production
Universal Compatibility
Built on a “carrier-neutral” engineering platform, ARTUS hammers are designed to synchronize seamlessly with the hydraulic flow and pressure requirements of all leading global brands. Whether you operate Caterpillar, Komatsu, JCB, or Soosan, our breakers offer a true plug-and-play experience. This universal adaptability ensures stable performance across your entire fleet without requiring complex or costly adjustments on any carrier.
Reinforced Durability for Heavy Tasks
Every core component, from the cylinder to the front head, is forged from high-purity alloy steel and undergoes a multi-stage vacuum heat-treatment process. This creates a specialized “hard-shell, tough-core” structure capable of withstanding the most grueling job sites. Whether in deep-mine quarrying or specialized underwater demolition, ARTUS provides the structural integrity needed to minimize unexpected downtime and metal fatigue.
Integrated Shock Absorption Systems
To shield both the carrier and the attachment from excessive stress, ARTUS integrates high-density polyurethane dampeners and heavy-duty buffers. This hardware-level vibration damping system absorbs up to 90% of harmful recoil energy during high-frequency striking. By reducing the shockwaves sent to the excavator’s boom and arm, we significantly lower your machine’s long-term maintenance costs and reduce operator fatigue.
Self-Adaptive Hydraulic Energy-Saving
Our advanced hydraulic valves are programmed to automatically regulate oil flow based on the actual resistance of the material being broken. This self-adaptive technology ensures that the breaker only consumes the energy necessary for the task, directly reducing the carrier’s daily fuel consumption. Furthermore, it prevents hydraulic oil from overheating, which protects the internal seal kits and extends the system’s lifecycle for maximum ROI.
Multi-Layer Anti-Leak Sealing Design
ARTUS utilizes premium-grade, multi-layer seal kits engineered to endure extreme temperatures and high-frequency friction without compromising pressure. This robust sealing construction not only eliminates the risk of oil leaks but also forms a barrier against dust and external contaminants. This design maintains optimal internal pressure, ensuring consistent striking power and a drastically reduced need for frequent onsite servicing.
Carrier Compatibility and Interchangeable Parts with Global Brands
One of the core advantages of choosing ARTUS is our “Carrier-Neutral” engineering philosophy. We understand that fleet owners often operate a diverse range of machinery. Therefore, our hydraulic breakers are designed to be universally compatible, ensuring seamless integration with the hydraulic systems of every major global carrier brand without sacrificing impact power or efficiency.
Perfect Integration with Major Carrier Brands
Achieving the perfect match between a rock hammer and an excavator requires more than just a mounting bracket. It requires precise synchronization of hydraulic flow and pressure. ARTUS engineers have spent years pre-calibrating our internal control valves to match the exact output parameters of the world’s most trusted carriers. This “Plug-and-Play” capability means you can install an ARTUS breaker onto a mini digger or a heavy excavator without worrying about hydraulic overheating or damaging the carrier’s main pump.
Standardized Design for Universal Spare Parts Compatibility
ARTUS eliminates the “proprietary parts” trap by building our units according to the industry’s most widely recognized “Gold Standard” technical blueprints. By aligning our dimensions with global leaders like Soosan and Furukawa (FRD), we guarantee that you will never be held hostage by long shipping times for specialized parts. This standardized approach ensures that essential wear items, such as breaker bits (chisels) and seal kits, are readily available at nearly any local heavy machinery dealership or parts supplier worldwide.
Soosan Standard
SB43 / SB70 / SB81
SB102 / SB121
Furukawa (FRD)
HB20G / HB30G
F6 / F12 / F45
European Premium
Atlas Copco /Epiroc MB/HB
Montabert V32 / V2500
NPK Series
GH9 / GH12 / GH18
Note: Beyond the standard models listed above, we offer comprehensive customization and ODM services to meet your specific operational requirements. Please contact us today to discuss a bespoke solution for your unique machinery or specialized project needs.
Versatile Hydraulic Breaker Applications
ARTUS rock hammers are engineered for versatility, providing high-impact energy and rugged durability across a vast spectrum of industries. From high-intensity primary mining to precision urban demolition, ARTUS ensures your project stays on schedule, regardless of the material or site conditions.

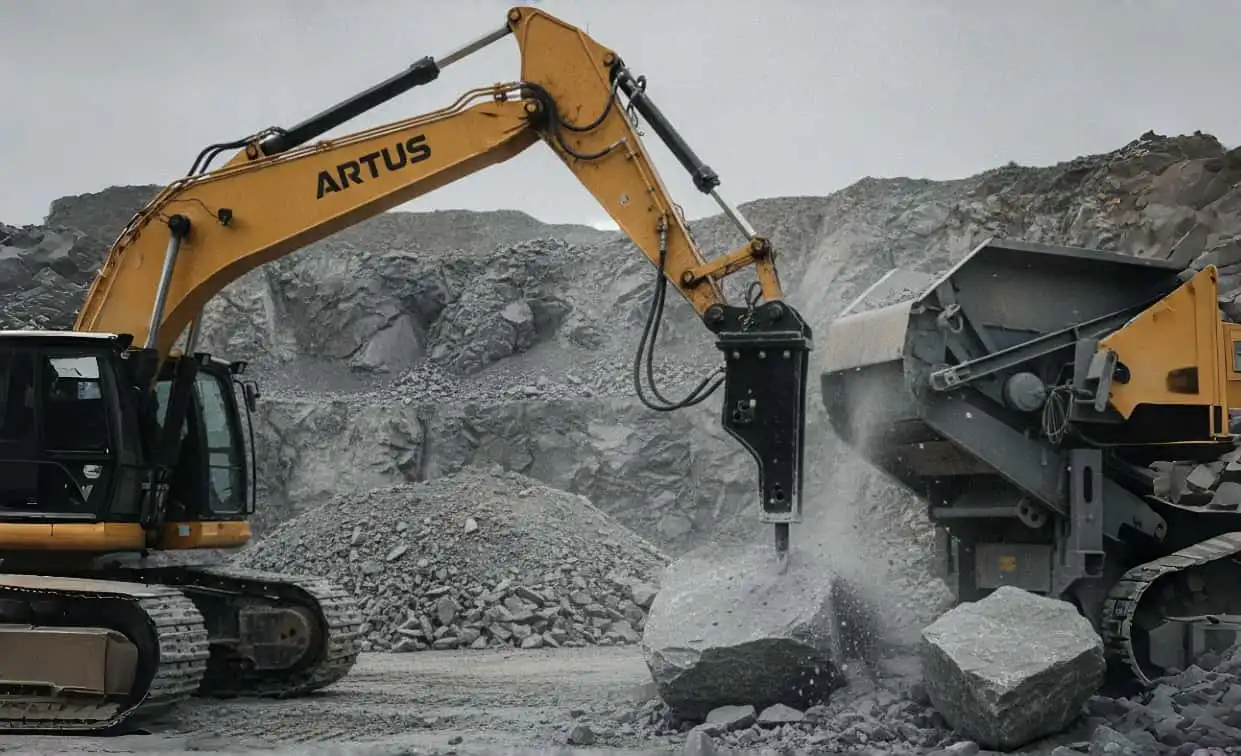

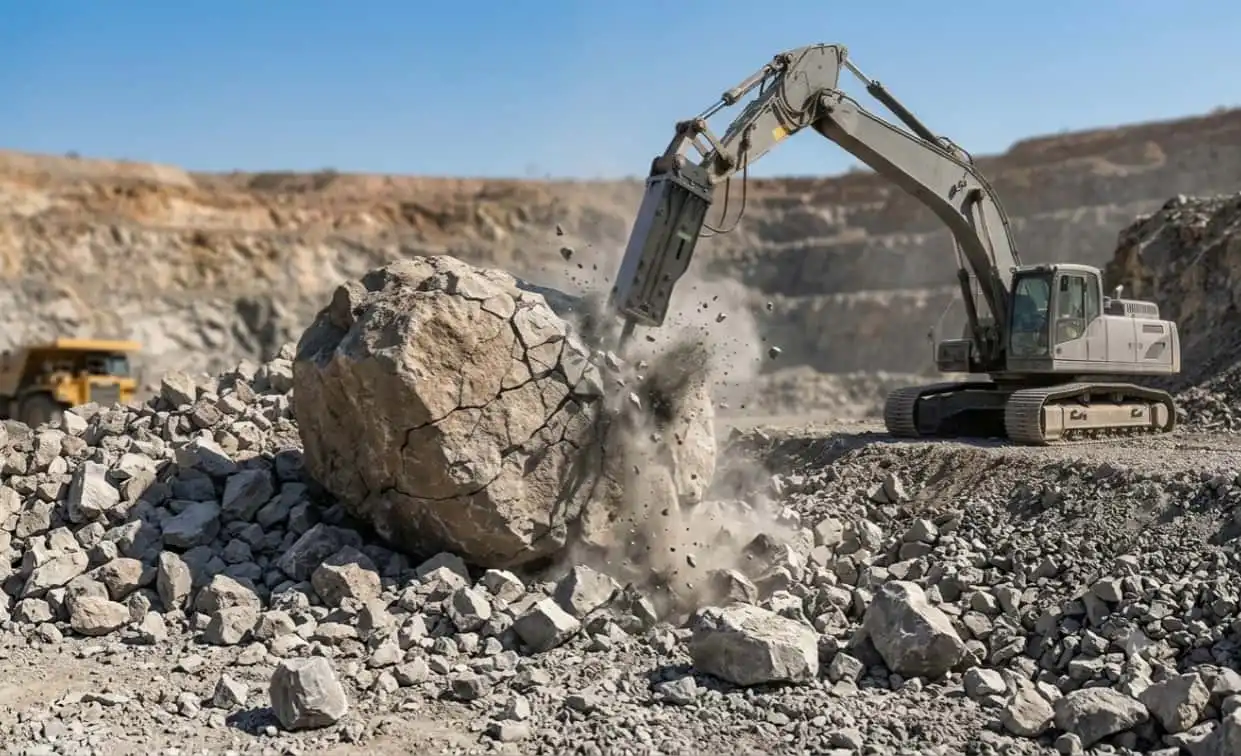

Primary Mining & Large-Scale Quarrying
Large-scale mining features high-hardness rock and vertical excavation needs. We recommend our Tower Type breakers. This design aligns impact energy directly with the boom to solve deep penetration challenges, offering the advantage of maximum downward force for continuous 24/7 production.

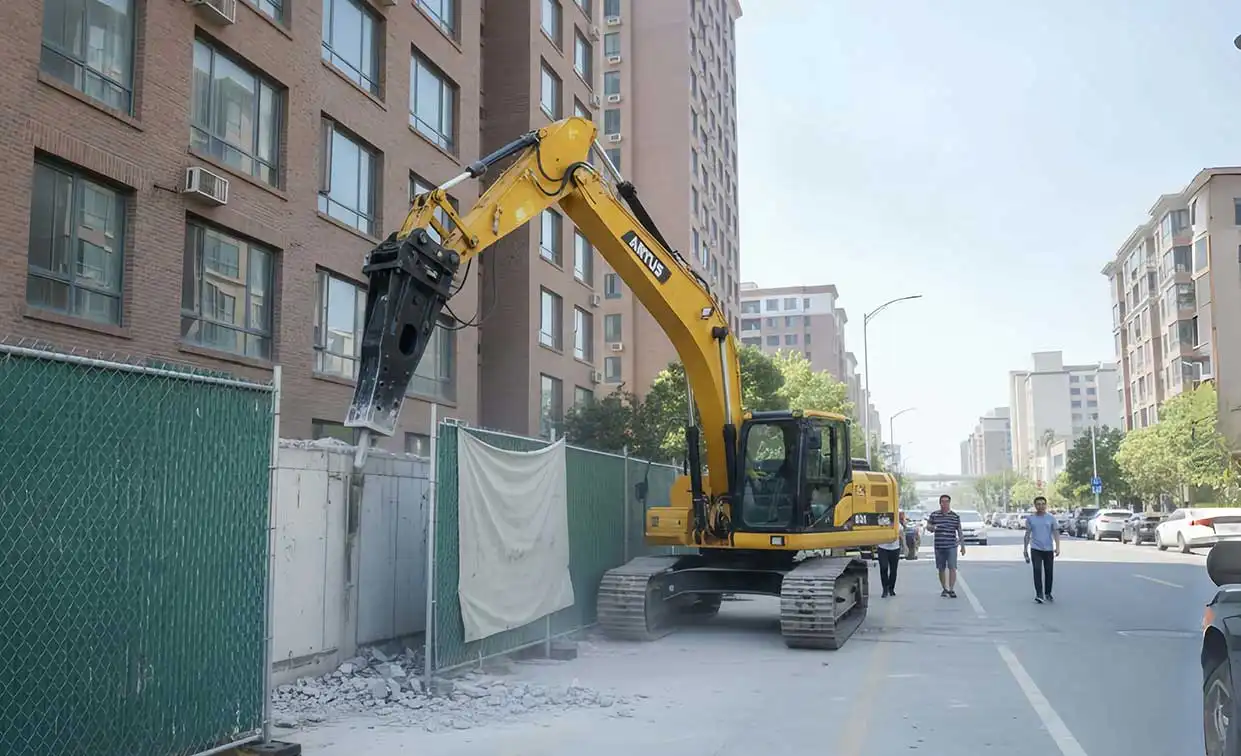

Urban Demolition & Building Dismantling
Urban sites are characterized by noise restrictions and falling debris risks. The Box (Silenced) Type is the ideal choice. It solves environmental compliance issues by significantly reducing decibel levels, with the advantage of a fully enclosed housing that protects the internal cylinder from damage.

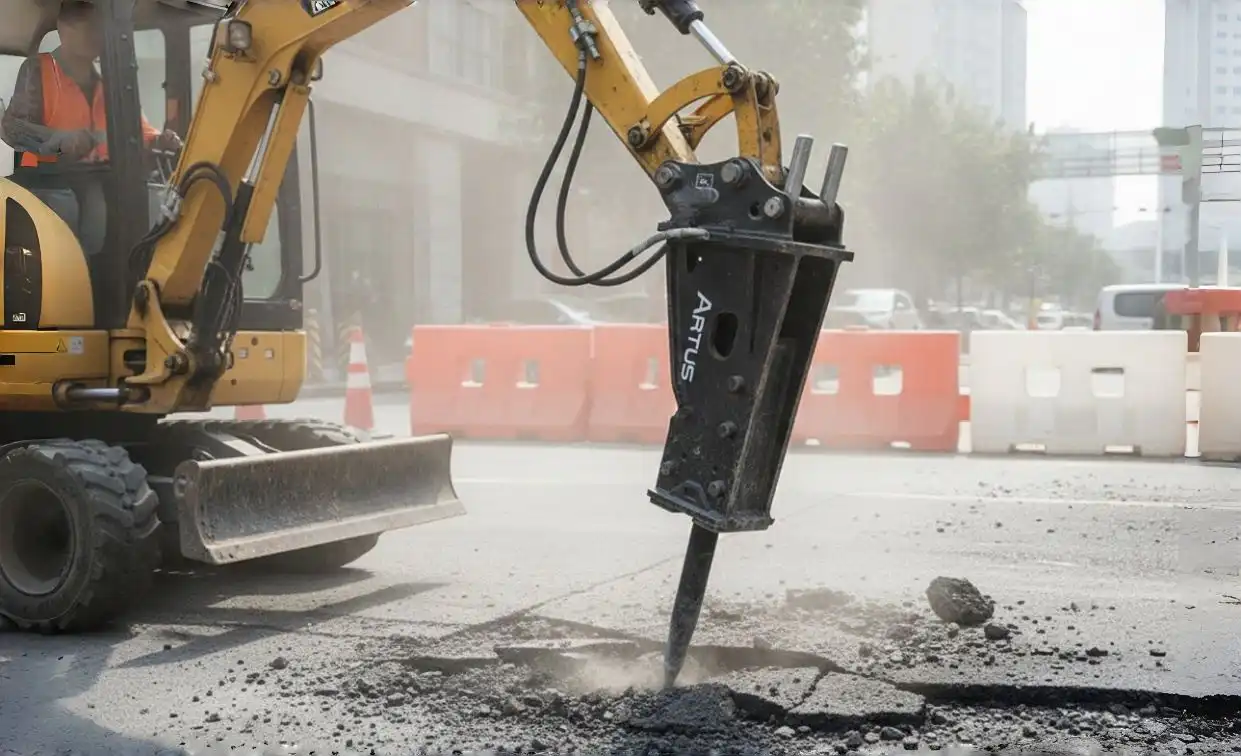

Infrastructure & Road Reconstruction
Roadwork requires frequent machine movement and horizontal breaking of asphalt. Our Side Type breakers are specifically adapted for this. This series solves the problem of operator visibility in tight road lanes, providing the advantage of a lower mounting point and easier onsite maintenance.

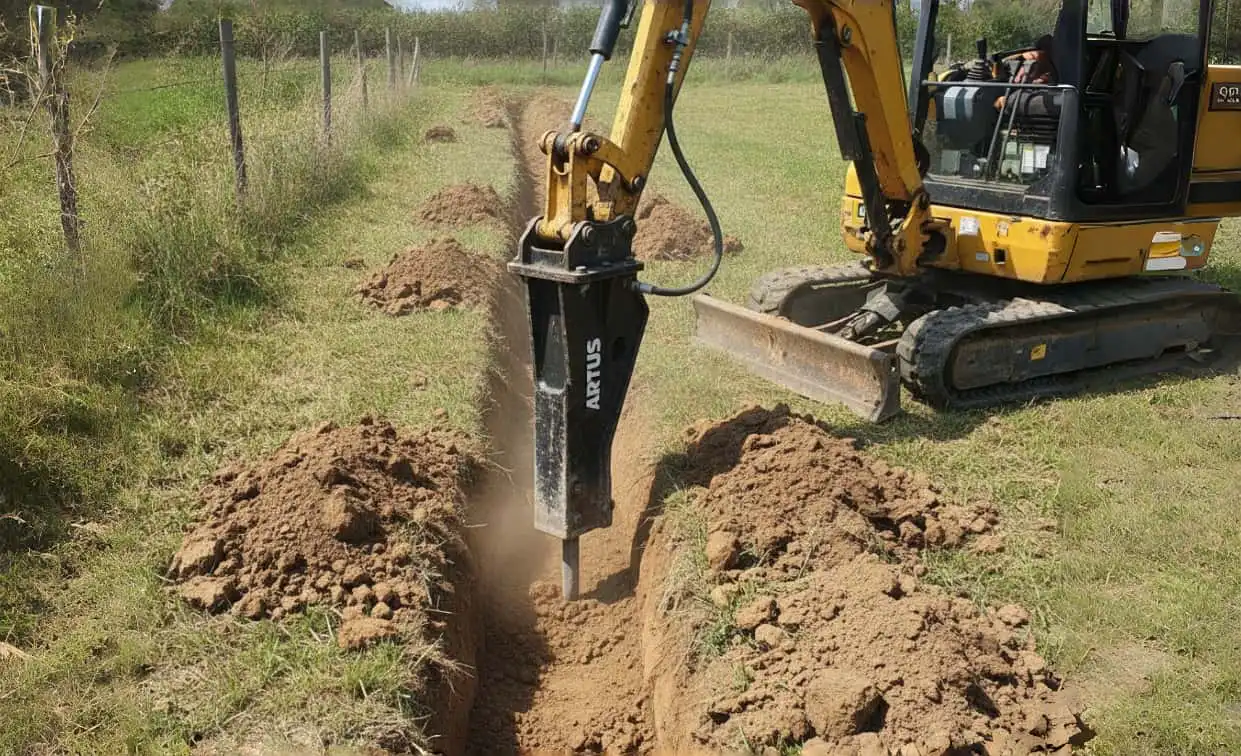

Trenching, Tunneling & Utility Work
These scenarios feature narrow working spaces and precision digging requirements. We recommend our Side or Tower Type units. Their slim profile solves the space constraints of deep trenches, offering the advantage of precise excavation breaker hammer control for utility and pipeline installations.
Specialized Underwater & Marine Projects
Subsea projects involve high-pressure, corrosive environments. Our Box Type (fitted with underwater kits) is required. This configuration solves the critical issue of water ingress into the striking chamber, with the advantage of consistent impact force for harbor deepening and seabed demolition.
Metallurgical Slag Removal & Landscaping
These tasks deal with extreme heat or irregular materials like boulders. The Side Type breaker is most effective here. It solves the problem of high-temperature residue clearing, providing the advantage of high heat resistance and the flexibility to break through varied agricultural obstacles.
Which Types of Hydraulic Breaker Fit You Best?
Click a type to see full scenario details below.
Box Type (Silenced)
SCENARIO
High-density urban areas, residential demolition, hospital / school zones where noise control is strictly regulated.
WHY IT WORKS
The fully enclosed housing with high-grade polyurethane dampeners acts as a massive sound barrier and physical shield.
KEY ADVANTAGE
Maximum cylinder protection + Lowest noise levels, preventing environmental complaints and reducing operator fatigue.
Side Type (Triangular)
SCENARIO
General road construction, infrastructure repairs, or projects requiring horizontal breaking in tight spaces.
WHY IT WORKS
The shorter overall length and lower mounting point give the operator an unobstructed view of the tool bit.
KEY ADVANTAGE
Excellent visibility + Easiest maintenance access + Highly economical price for multi-purpose fleets.
Tower Type (Top)
SCENARIO
Open-pit quarries, deep trenching, or vertical building demolition demand maximum downward penetration.
WHY IT WORKS
Straight-line design aligns impact energy perfectly with the carrier’s boom for direct force transfer.
KEY ADVANTAGE
Longest vertical reach + Most powerful impact energy for deep-hole breaking and efficient penetration.
Find the Perfect Hydraulic Breaker for Your Project
Selecting the ideal rock breaker unit is a strategic balance of three dimensions: your machine’s weight, the carrier’s configuration, and the specific material you are tackling. A mismatched unit leads to low productivity and increased wear on your excavator’s boom. At ARTUS, we simplify the selection process into a three-step matching framework to ensure you achieve the maximum ROI on every job site.
Step 1 — Match by Tonnage & Magnitude
Identify the impact energy class required for your carrier’s lifting capacity.
Compact & Mini Series (0.5t – 8t Carriers):
Ideal for mini diggers and precision tasks in landscaping or residential demolition. These units are engineered to provide high striking frequency without overwhelming small-scale hydraulic systems.
Medium Series (10t – 25t Carriers):
The industry workhorse for road reconstruction and general civil engineering. These breakers offer the perfect balance of impact energy and fuel efficiency for standard-sized excavators.
Heavy-Duty & Production Series (30t – 50t+ Carriers):
Engineered for primary rock breaking and heavy mining. These units deliver massive impact force to fracture high-hardness materials like granite and basalt in high-production environments.
Step 2 — Match by Carrier Type & Mounting
Ensure mechanical compatibility and hydraulic synchronization.
Excavator Mounted Breakers (Standard Integration):
The global standard for reach and depth. ARTUS units ensure 100% hydraulic synchronization with the boom and arm specifications of all major excavator brands.
Skid Steer & Backhoe Loader Attachments (The Versatile Fleet):
For agile loaders, we offer specialized skid steer rock breaker and backhoe loader with breaker setups. These feature optimized flow control valves to protect the carrier’s hydraulic pump from pressure spikes.
Stationary Rock Breaker Systems (Fixed Installations):
Specialized for mining grizzlies and primary crushing stations. These fixed-pedestal units are designed to clear blockages and break oversized boulders in continuous 24/7 operations.
Step 3 — Match by Market & Application
Select the optimal structural design (Type) based on your working environment.
Mining & Heavy Quarrying:
Choose our Tower (Top) Type. The straight-line energy transfer delivers the most powerful downward force, providing the superior penetration needed for hard rock mining.
Urban Demolition & Building Dismantling:
Select the Box (Silenced) Type. The fully enclosed housing solves strict urban noise regulation issues and protects the internal cylinder from falling debris in confined spaces.
Civil Infrastructure & Road Reconstruction:
Opt for the Side Type breaker. Its lower mounting point provides the best visibility for the operator and allows for the easiest maintenance access during fast-paced roadwork projects.
Secure Best ARTUS Factory Price and Maximum Discount
To guarantee the most competitive hydraulic breaker price for your project, you can follow a strategic purchasing process. By leveraging the factory-direct model of ARTUS, you can eliminate unnecessary expenses and maximize your return on investment. Here are the specific actions you can take to secure the lowest possible quote and the highest value.
1. Purchase Direct from the Manufacturer to Eliminate Dealer Markups
Skip local distributors and trading companies to remove third-party commissions. In the heavy machinery industry, local dealer markups typically range from 15% to 30% to cover showroom overheads. By ordering directly from the ARTUS factory, you reclaim these margins, ensuring you pay only for the high-grade steel and elite engineering of your unit.
2. Opt for All-Inclusive Ready-to-Work Packages
Consolidate your purchase into a single “ready-to-work” package to avoid the high cost of individual accessories. Buying 2 chisels, hoses, and a charging kit separately can cost $500 to $800 more than our bundled price. Our transparent quotes include all essentials, preventing hidden fees from inflating your project budget by up to 10% during the final invoice.
3. Leverage Tiered Discounts for Bulk and Fleet Orders
Request a tiered quotation if you are outfitting a fleet or a distribution network. ARTUS offers volume-based discounts, typically ranging from 5% for 3-5 units to 12% for bulk container orders. Leveraging these economies of scale allows you to secure the most aggressive manufacturer rates, drastically reducing your initial capital expenditure per project.
4. Provide Precise Machine Specifications for Accurate Budgeting
Consult with our engineers to match the breaker precisely to your carrier. A mismatched breaker can waste up to 15% in fuel consumption and increase cycle times. Professional calibration ensures your ARTUS unit operates at peak efficiency, potentially increasing your daily rock production by 20% and preventing costly hydraulic pump repairs that average $3,000+.
ARTUS Global Project Cases
Urban Demolition · Western Europe
ARTUS Silenced Box Type Breaker mounted on a 25-ton Volvo excavator.
A major residential demolition project in a noise-regulated zone in Germany. The contractor needed high-impact energy and comply with strict decibel limits.
– 15 dB
noise reduction
No noise complaints
Ahead of schedule
Road Reconstruction · Southeast Asia
ARTUS Side Type Breaker mounted on a 20-ton Komatsu excavator.
A high-speed highway widening project in Thailand requiring frequent horizontal breaking of thick concrete barriers and asphalt pavement.
– 20%
maintenance time
Superior visibility
Rapid daily greasing
Hard Rock Quarrying · South America
ARTUS Tower Type Breaker mounted on a 45-ton Caterpillar excavator.
A granite quarry in Chile is facing challenges with vertical penetration and primary rock breaking. Standard hammers struggled with the hardness of the material.
+ 15%
penetration per blow
Daily tonnage ↑
Continuous high-intensity
What is a Hydraulic Breaker?
A hydraulic breaker, widely known as a rock hammer or excavator jack hammer, is a powerful percussion attachment designed to demolish hard structures and blast rocks. Unlike standard buckets, a rock breaker unit utilizes the hydraulic power of the carrier (such as an excavator, mini digger, backhoe or skid steer) to drive a high-frequency internal piston against a steel chisel. This concentrated impact force allows operators to tackle tasks that are impossible for manual labor or standard machinery, from primary rock breaking in quarries to precision concrete demolition in urban areas.
How Does a Hydraulic Rock Hammer Work?
High-Pressure Oil Enters the Cylinder
Hydraulic oil from the carrier machine enters the breaker cylinder at high pressure, providing the energy source for the entire impact sequence.
Piston Rises, Nitrogen Gas Compresses
Oil pressure forces the piston upward. As it rises, it compresses the nitrogen gas chamber above, storing energy like a spring being loaded.
Internal Valve Reverses Oil Flow
Once the piston reaches peak compression, the internal control valve triggers — instantly switching oil flow direction to initiate the powerful downstroke.
Expanding Gas + Oil Fire the Piston Down
The stored nitrogen energy is released and combined with the reversed hydraulic oil, accelerating the piston downward at high velocity, concentrating maximum energy.
Piston Strikes Chisel — Maximum Impact
The piston strikes the steel chisel bit at the base, transferring all kinetic energy into the target material — shattering rock or concrete. The cycle immediately repeats.
ARTUS Maintenance and Technical Support
To maximize the ROI of your rock breaker unit, knowing how to operate it correctly and resolve issues quickly is essential. When challenges arise on the job site, you need fast, effective solutions. Our technical support framework is designed to help you prevent premature wear, diagnose common operational issues, and supply the right parts, ensuring your equipment delivers maximum profitability with zero unnecessary downtime.
Solution: The majority of internal damage is caused by improper operation. We guide operators to follow three “Golden Rules”: Avoid Blank Firing (never fire when the chisel isn’t pressed against material), Maintain a 90-Degree Angle to prevent bending stress, and ensure Consistent Greasing every 2 hours of operation.
Impact: Industry data shows that over 70% of major breaker failures are linked to improper operation. By following these preventive steps, operators can extend the breaker’s lifespan by up to 40%, saving thousands of dollars in premature piston or front-head replacements.
Solution: A hydraulic breaker slow issue is typically caused by a mismatched oil flow rate from the carrier, contaminated hydraulic oil, or worn internal valves. ARTUS provides diagnostic checklists to help your mechanics quickly check excavator flow settings and clear valve blockages to restore peak hitting frequency.
Impact: A sluggish breaker operating at only 70% efficiency means your project takes 30% longer to complete. By quickly synchronizing the hydraulic flow using our guides, you restore 100% productivity, instantly reducing daily fuel burn and extra labor costs.
Solution: The nitrogen gas chamber acts as the “spring” that fires the piston. Over time, gas levels naturally deplete. When impact force drops, hydraulic breaker re-gassing is required. ARTUS supplies professional, easy-to-use charging kits and step-by-step guidance to safely re-gas the back head and maintain optimal pressure.
Impact: Operating with low nitrogen pressure can reduce actual striking power by 30% to 40%, forcing the machine to work harder for fewer results. Routine re-gassing takes less than 30 minutes but guarantees your equipment maintains maximum destruction power per blow.
Solution: Normal wear and tear of breaker bits (chisels) and seal kits shouldn’t halt your site. ARTUS maintains a standardized design that utilizes globally accessible parts. Whether you need moil, blunt, or wedge bits, our universal components ensure fast and hassle-free swapping at any local dealer.
Impact: The highest hidden cost in construction is idle equipment waiting for proprietary spare parts. Because ARTUS parts are 100% compatible with industry standards, you eliminate waiting time for overseas shipping. Zero waiting time means your fleet stays active and profitable.
Professional Hydraulic Breaker Factory
As a premier manufacturer of high-performance hydraulic breakers, ARTUS offers more than just world-class equipment; we provide a complete industrial partnership. By removing middlemen, we ensure our clients receive factory-direct pricing and expert technical support. Whether you are building your own brand through our OEM services or need specialized technical support for a large-scale project, ARTUS is your dedicated manufacturing partner.
Massive Production Capacity
We operate leading-edge production lines equipped with precision CNC machining centers to ensure high-volume, efficient output. ARTUS maintains a steady annual production of every units to fulfill large global orders for mining and distribution networks, ensuring industry-leading delivery times for our international partners.
Rigorous Quality Validation
Every ARTUS breaker is backed by a “Zero-Defect” manufacturing philosophy. We conduct 100% ultrasonic material testing and a mandatory 4-hour high-pressure functional test on all finished units. This rigorous process guarantees that every hammer meets elite performance standards before it leaves our facility.
Professional OEM Expertise
We serve as a powerful manufacturing engine for global partners through professional OEM and private labeling services. From precision engraving to custom coatings, ARTUS delivers elite engineering under your brand, allowing you to grow your market presence with confidence while securing a competitive edge.
Advanced R&D Support
Our in-house R&D team provides continuous innovation and technical ODM backing for unique job site requirements. We offer factory-level adjustments for specialized parts, ensuring your equipment is perfectly optimized for specific machine populations and the most challenging environmental conditions worldwide.
FAQ:
A: While used units are cheaper upfront, they often harbor hidden internal wear and lack a warranty. A new ARTUS breaker offers factory-direct pricing comparable to used units, but with the security of 100% internal integrity and a comprehensive manufacturer’s warranty.
A: Box-type (Silenced) is fully enclosed, making it ideal for urban projects due to its low noise and high cylinder protection. Side-type has an open structure, offering the operator superior visibility and the industry’s easiest maintenance access.
A: Yes. Our “carrier-neutral” design ensures 100% compatibility with all major global brands. We provide customized mounting pins, bushings, and hoses to ensure a perfect “plug-and-play” fit for your specific excavator or loader.
A: Yes. However, a specialized underwater kit is required. This system uses compressed air to prevent water from entering the striking chamber, protecting the piston and cylinder from catastrophic damage during subsea projects.
A: Most of them are. ARTUS units follow the industry’s “Gold Standard” blueprints. Our breaker bits (chisels), seal kits, and internal components are 100% interchangeable with standard series like Soosan SB and Furukawa HB, making local sourcing easy.
A: This is typically caused by three factors: incorrect nitrogen (N2) gas pressure, contaminated hydraulic oil, or a mismatched flow setting on the carrier. Routine re-gassing and checking your machine’s hydraulic synchronization usually restore peak hitting power.
