Box Type Hydraulic Breaker
About 8–10 dB quieter than exposed-body breakers
Seal life extended by roughly 35%, fewer unplanned stops
Suited for mining, demolition, road construction, and tunnel projects

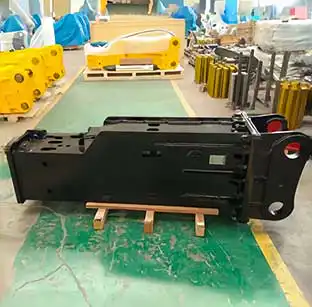

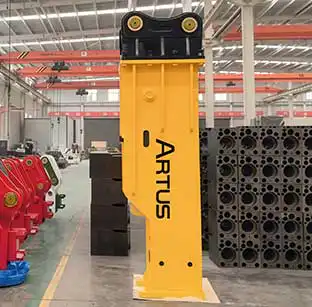

Box Type Hydraulic Breaker
The ARTUS Box Type Hydraulic Breaker replaces the exposed body typical of triangular or tower-type breakers with a fully enclosed box housing, shielding the core striking components from dust and flying debris while suppressing vibration transfer from high-frequency impact.
Designed for 5–50 ton excavators, it delivers strong breaking force without compromising on noise control or component durability — well suited to building demolition, road construction, and quarry breaking where noise restrictions or part protection are a priority.
Applied To:
5-50 ton excavator
Features:
Fully enclosed box structure
Built-in vibration damping
All Models Available
Hot Sale Models Specifications
| Specification | A68/SB40 | A140/SB81 | A155/SB121 | A165/SB131 | A175/SB151 |
| Chisel Diameter | 68mm | 140mm | 155mm | 165mm | 175mm |
| Whole Weight | 320Kg | 1990Kg | 2850Kg | 3300Kg | 4450Kg |
| Oil Flow | 40-60L/min | 120-180L/min | 180-240L/min | 190-260L/min | 200-250L/min |
| Working Pressure | 90-130Bar | 160-220Bar | 180-230Bar | 200-240Bar | 210-240Bar |
| Setting Pressure | 160Bar | 210Bar | 250Bar | 260Bar | 270Bar |
| Working Frequency | 500-990BPM | 350-450BPM | 200-300BPM | 150-300BPM | 120-200BPM |
| Impact Energy | 1020J | 6500J | 10930J | 13200J | 15500J |
| Excavator Class | 5.0-7.5T | 20-25T | 25-30T | 30-36T | 35-40T |
| We offer hydraulic breaker OEM service compatible with all brands and models of excavators, backhoe loaders, and skid steers currently available on the market. All products can be engraved with your company name and logo. Of course, you can opt for our private label option. | |||||
Reliable Across All Sites
Box Type Hydraulic Hammer Applications
By fully enclosing the piston, cylinder, and other core striking components within a sealed housing — and pairing that structure with built-in vibration damping — the Box Type Hydraulic Breaker addresses three core challenges at once: dust intrusion, vibration transfer, and noise control. Whether it’s continuous high-intensity work at a mine site, precision demolition in noise-sensitive urban areas, or confined-space excavation in tunnels and trenches, the enclosed design maintains stable striking output while reducing component wear and maintenance frequency — making it a practical fit across mining, construction, municipal, and underground projects.

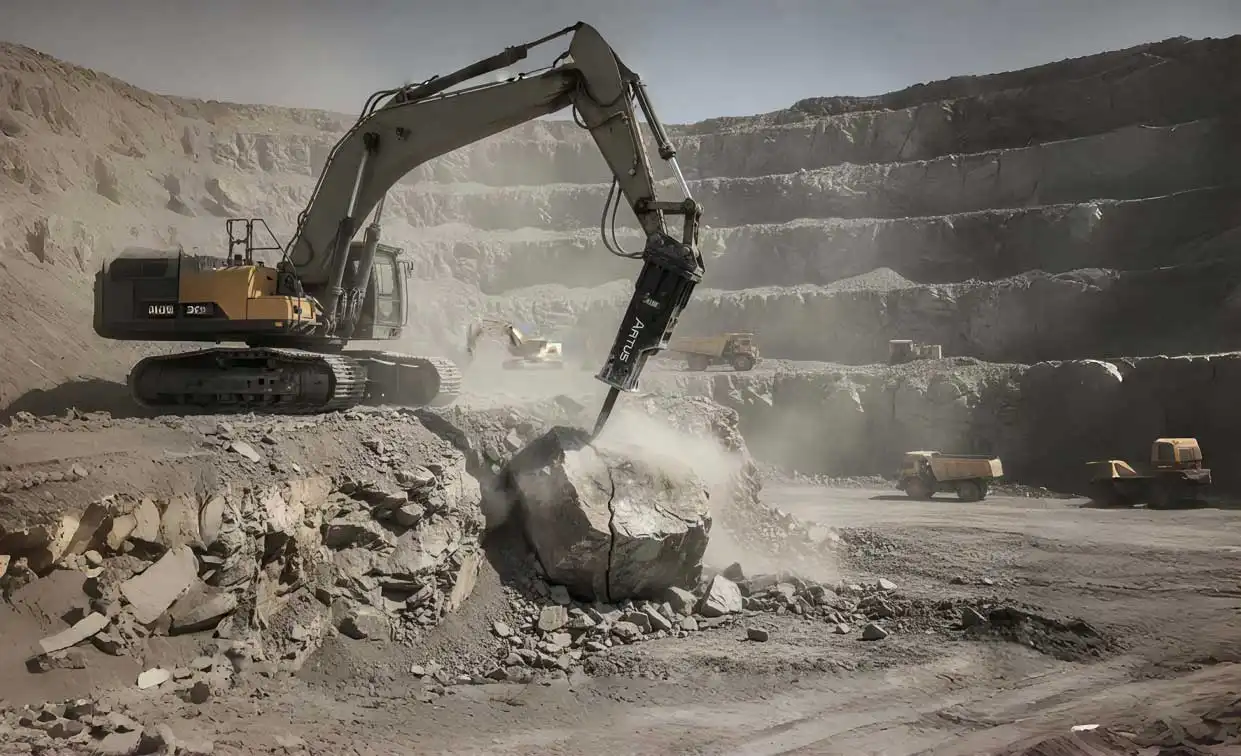

Open-Pit Mining
Open-pit sites involve high dust concentrations and long continuous shifts, conditions under which exposed piston and cylinder assemblies wear out seals quickly. The fully enclosed housing shields these core components from dust intrusion, supporting sustained secondary breaking output without frequent stops for seal maintenance.

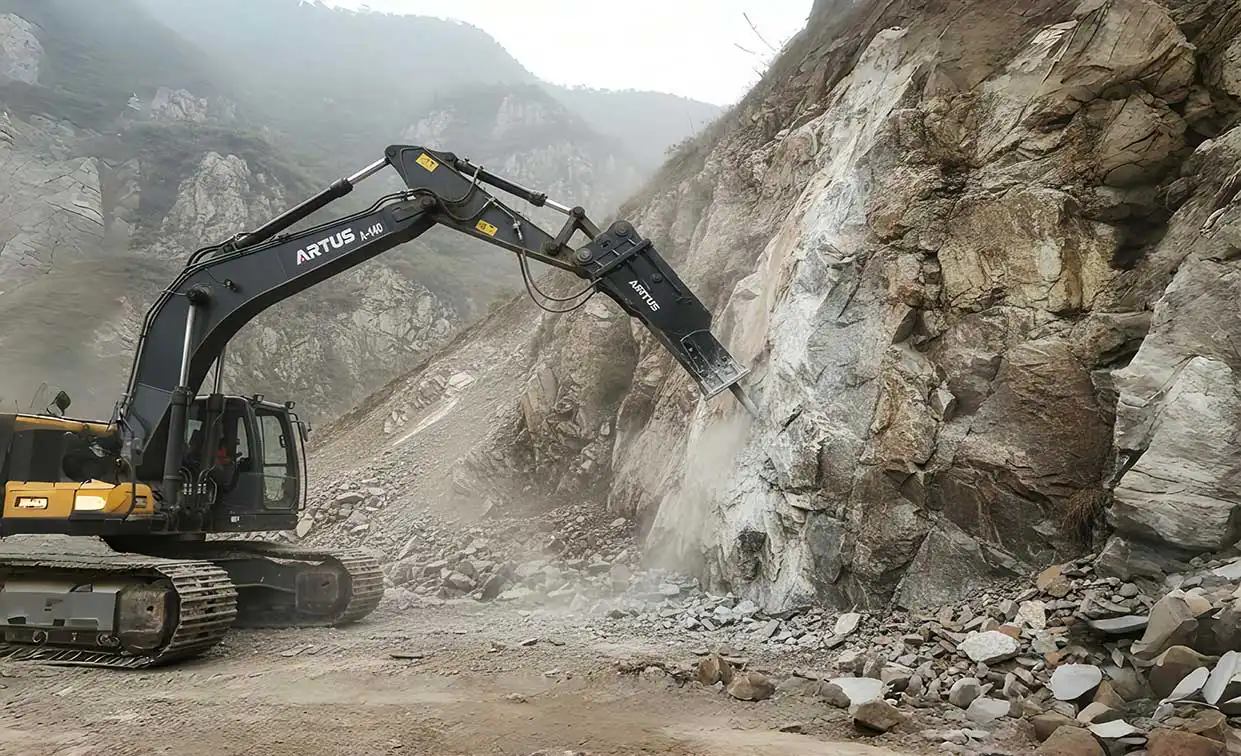

Mountain Excavation
Mountain terrain often requires repeated angle adjustments on uneven rock faces or slopes, and exposed breaker bodies are prone to loosening or abnormal noise under intense vibration. The box housing reduces vibration feedback during high-hardness rock breaking, keeping the unit stable and limiting the extra wear caused by terrain-induced shock.

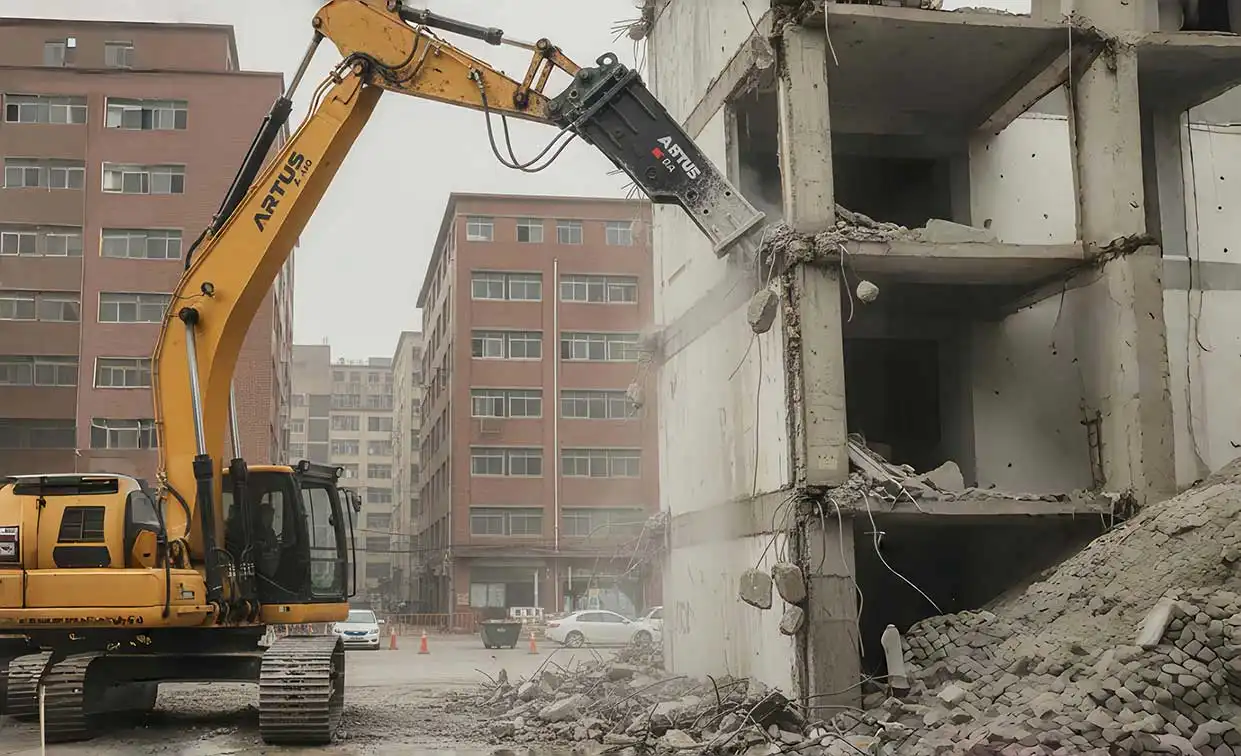

Building Demolition
Demolition projects are typically located in densely populated areas with strict noise restrictions. The silenced box design contains impact noise within the housing, noticeably reducing noise transfer compared to exposed-body breakers — allowing contractors to work near existing structures or residential zones while having environmental noise limits.

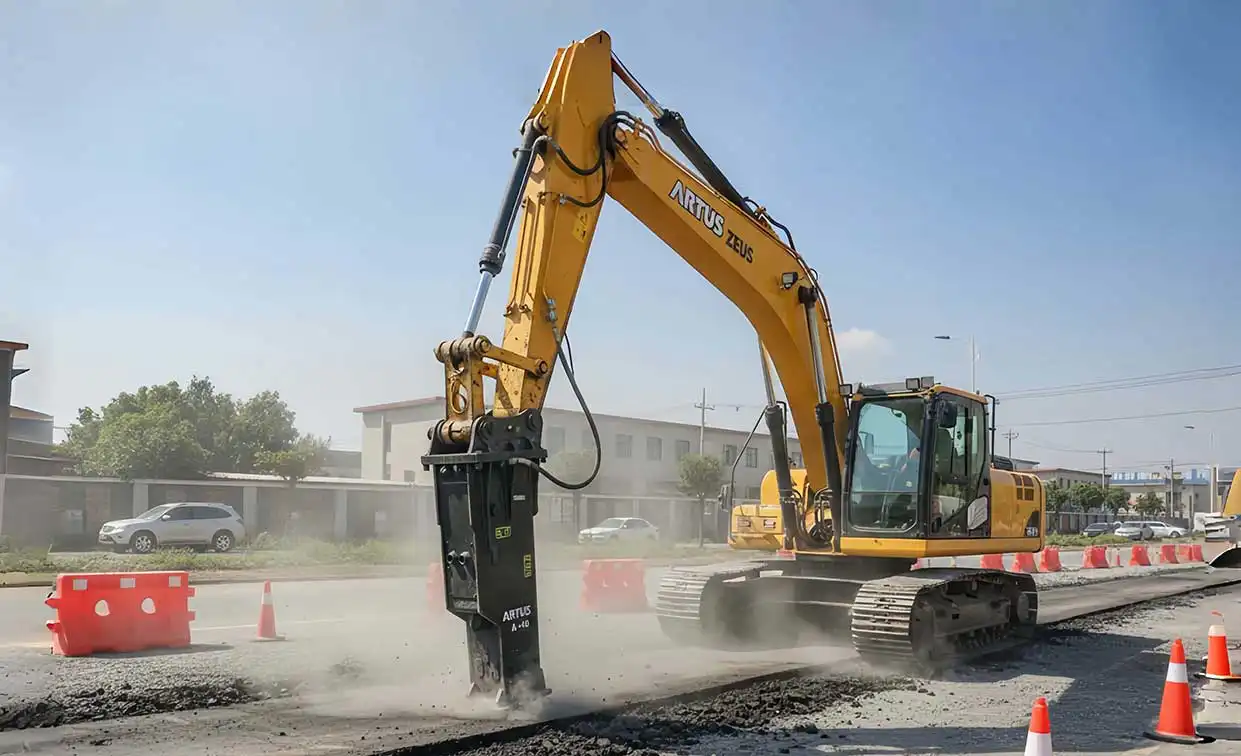

Road Construction
Asphalt milling and pavement reconstruction generate heavy debris and dust, which can infiltrate the piston gap of exposed-body breakers over time and accelerate seal aging. The enclosed structure blocks this intrusion path, reducing the frequency of part replacement caused by dust wear, making it better suited to extended municipal road projects.
Urban Worksites
Buildings near hospitals or schools are often sensitive to ground vibration, where excessive shock can affect structural safety or disrupt nearby residents. Our enclosed housing suppresses outward vibration transfer, helping keep the breaker’s impact on these sensitive surroundings within a tighter range.

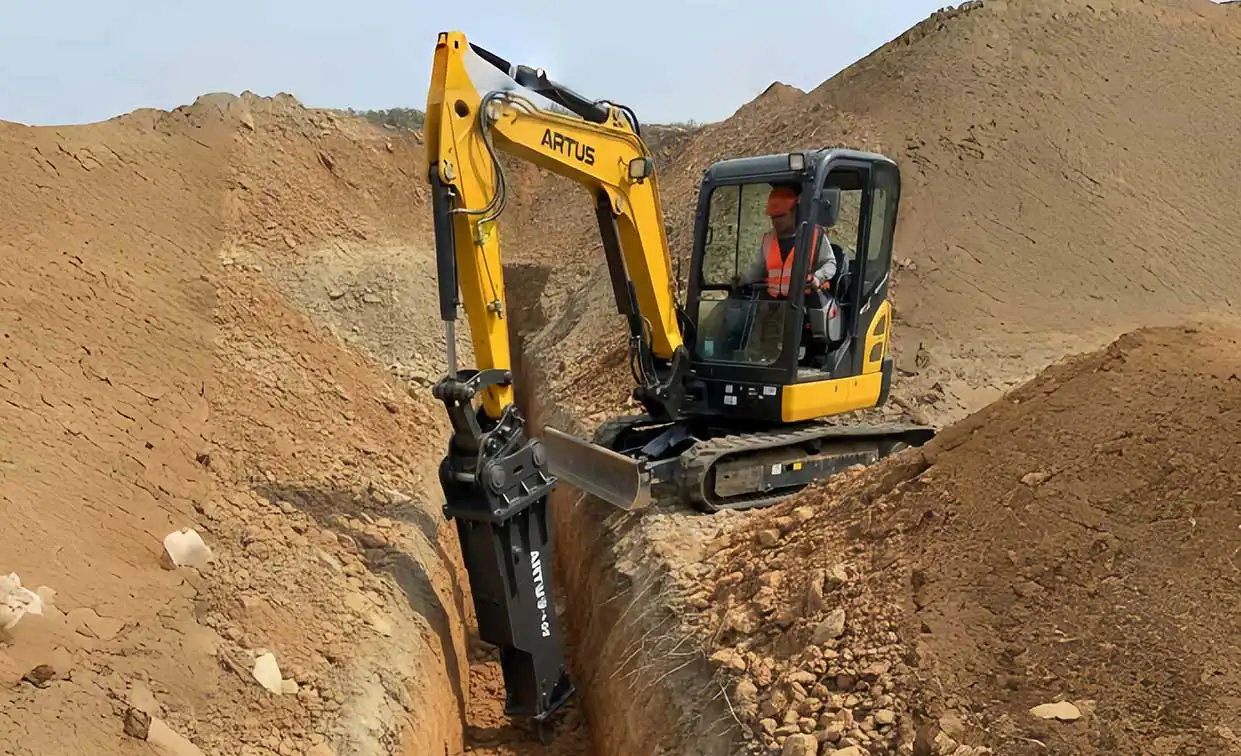

Trench Excavation
Trench spaces are narrow, requiring the breaker to be positioned precisely without striking the trench walls. Our Artus compact, unified box structure gives operators better control in confined trenching conditions, while the enclosed body also limits dust and debris exposure within the trench.

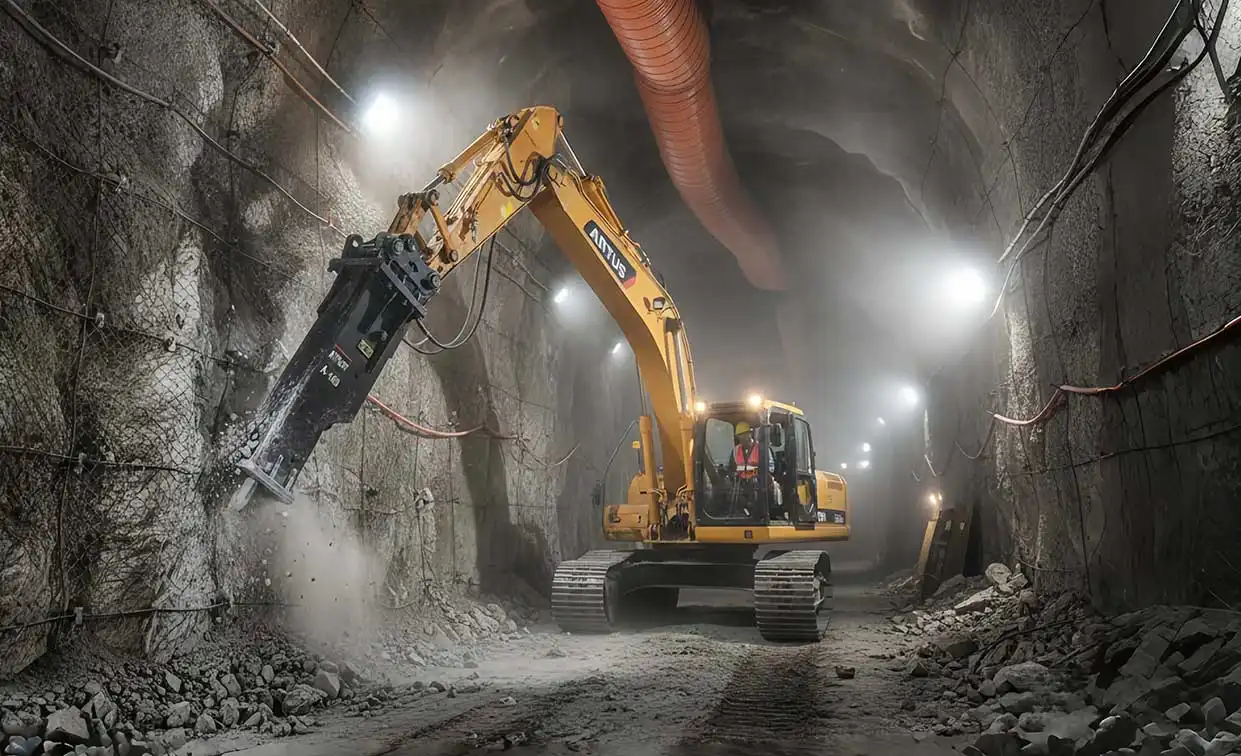

Tunnel Construction
Tunnel and subway excavation takes place in confined spaces where noise tends to amplify, posing risks to working conditions. Our box housing contains impact noise within the structure, improving the working environment in enclosed spaces compared to other breakers, while also limiting dust accumulation.

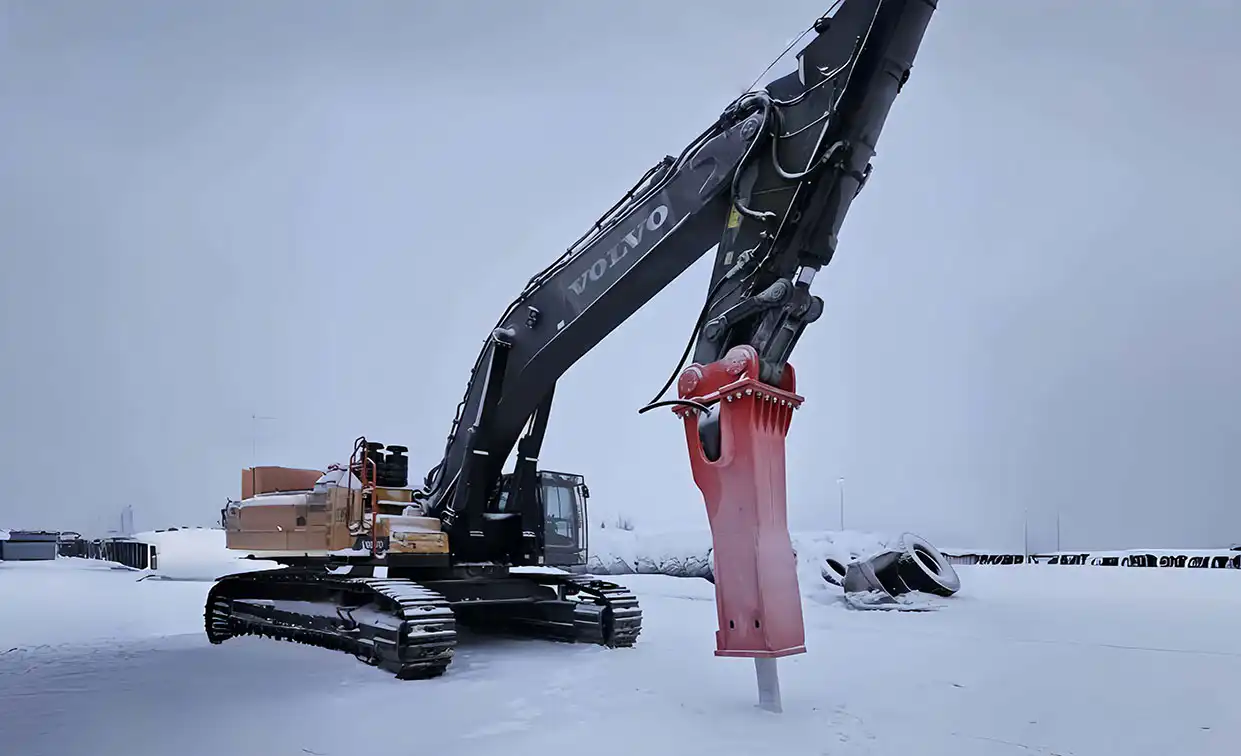

Extreme Climates
High-temperature desert conditions and extreme cold accelerate seal aging and raise failure rates. Our ARTUS box housing provides an added physical barrier protecting internal seals from direct environmental exposure, helping the unit maintain a more stable service life under harsh climate conditions.
Artus Box Type Hydraulic Breaker Advantages
Silenced Operation Built for Urban Compliance
Our Artus breakers use a fully enclosed box housing that contains impact noise within the structure, enabling nighttime or close-proximity work in noise-sensitive areas.
Fully Enclosed Structure Extends Service Life
Our box type hydraulic breaker fully shields the piston, cylinder, and other core components within the box housing, blocking dust and debris intrusion and reducing the risk of premature wear caused by environmental exposure.
Stable Striking Output Under Heavy-Duty Conditions
The box structure suppresses vibration transfer while keeping the unit stable, so our equipment maintains consistent striking performance even during sustained high-intensity operation.
Compatible with Standard Mounting Specs
Built to industry-standard mounting dimensions, our box type hydraulic breakers fit directly onto mainstream excavator brands without additional modification or custom brackets.
Proven Performance, Built to Fit
Artus Global Hydraulic Breaker Solutions
Artus specializes in the design and manufacturing of box type hydraulic breakers, with products deployed across mining, urban demolition, and road construction projects in countries worldwide. Whatever excavator brand a customer currently operates, our team provides matching model recommendations and OEM/ODM customization on request — ensuring reliable performance across every job condition.
10000+
Units/Year Output
3000+
Global Clients
98%
Success Rate

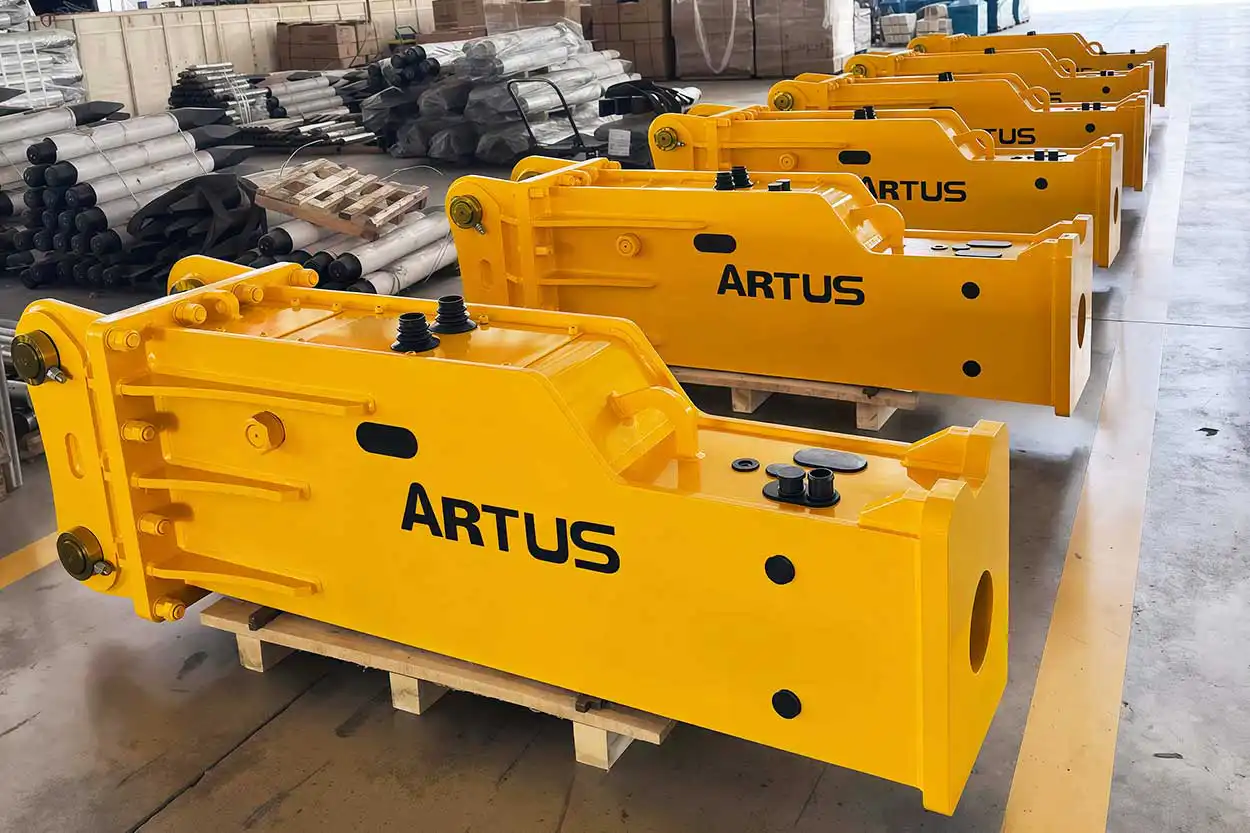

UAE · Urban Trenching for Pipeline
Rock breaking ahead of pipeline laying · Desert heat conditions
- 50°C Measured ambient operating temperature
- 20-ton class Carrier excavator
- 400+ hrs Between major service intervals (~35% longer than prior equipment)
The added seal protection from the fully enclosed box housing prevented unplanned downtime from seal degradation under desert heat, with the project team reporting a noticeable drop in overall maintenance costs.

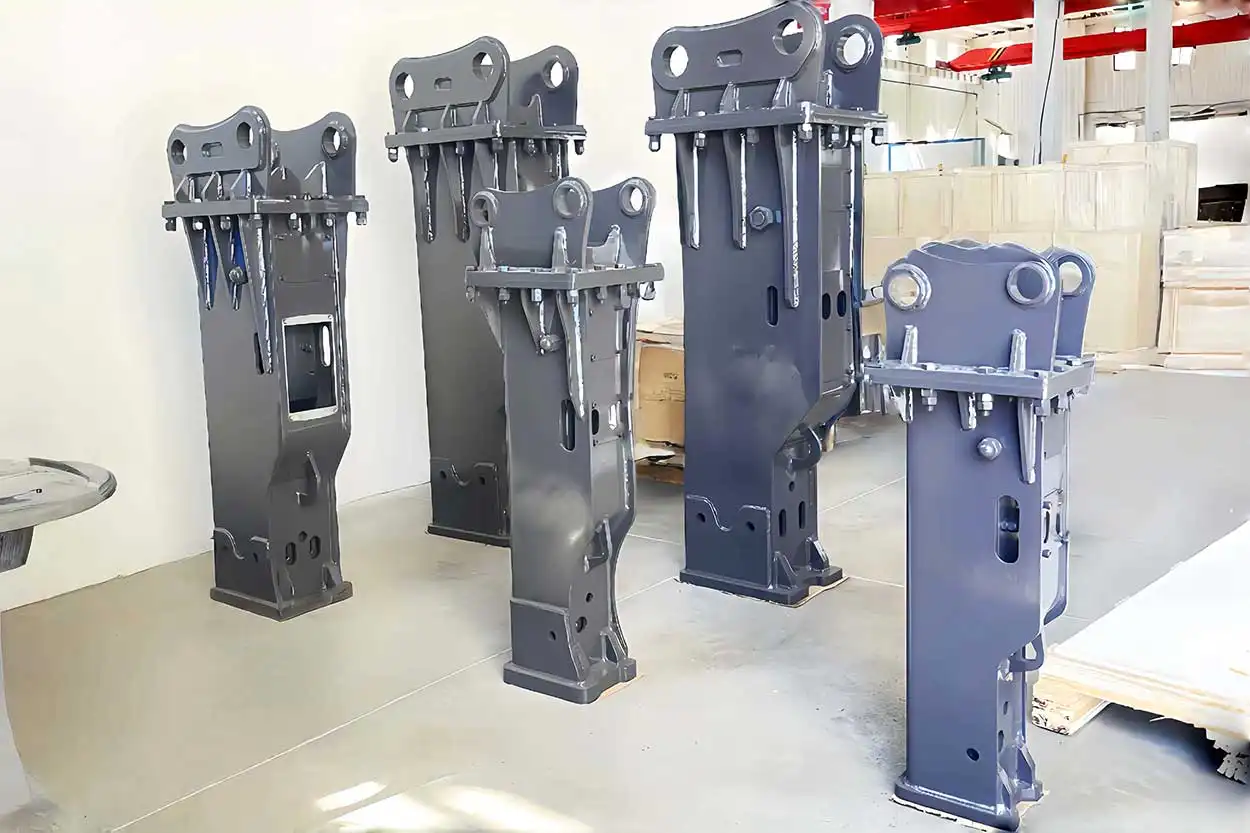

Vietnam · Stone Quarry Secondary Breaking
Granite quarry breaking · High-intensity continuous operation
- 20 hrs/day Continuous operating schedule
- 150mm Chisel diameter configuration
- ~25% increase in daily processing output vs. prior equipment
The breaker’s stable, continuous output drove a measurable increase in daily processing volume compared to the previous generation of equipment, allowing the site to meet output targets without adding extra units.

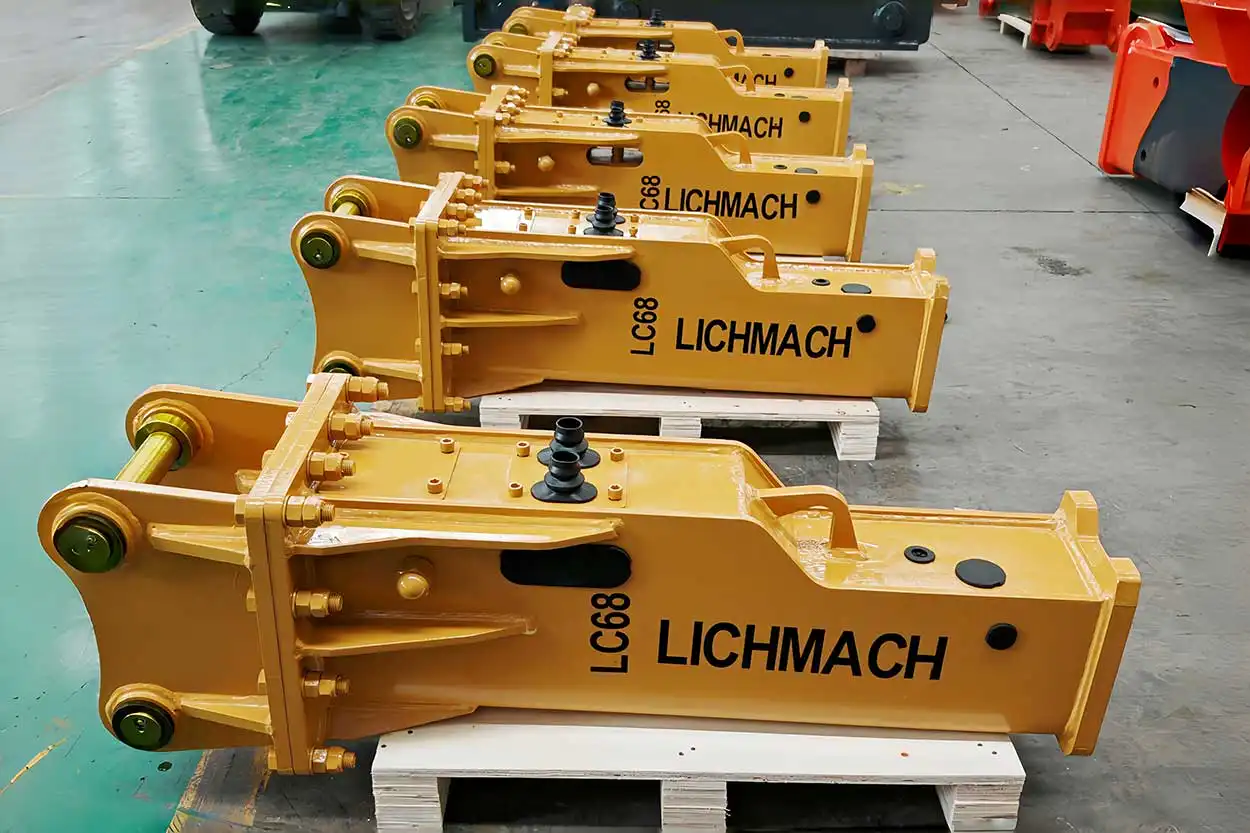

Poland · Old Town Building Demolition
Concrete demolition near historic district · Noise-sensitive zone
- Below 85dB(A) Measured noise at 7 meters
- 18-ton class Carrier excavator
- Nighttime work permit successfully approved
The effective noise control of the silenced box design meant the project faced no resident complaints when applying for nighttime work permits, allowing the demolition schedule to finish ahead of the original timeline.

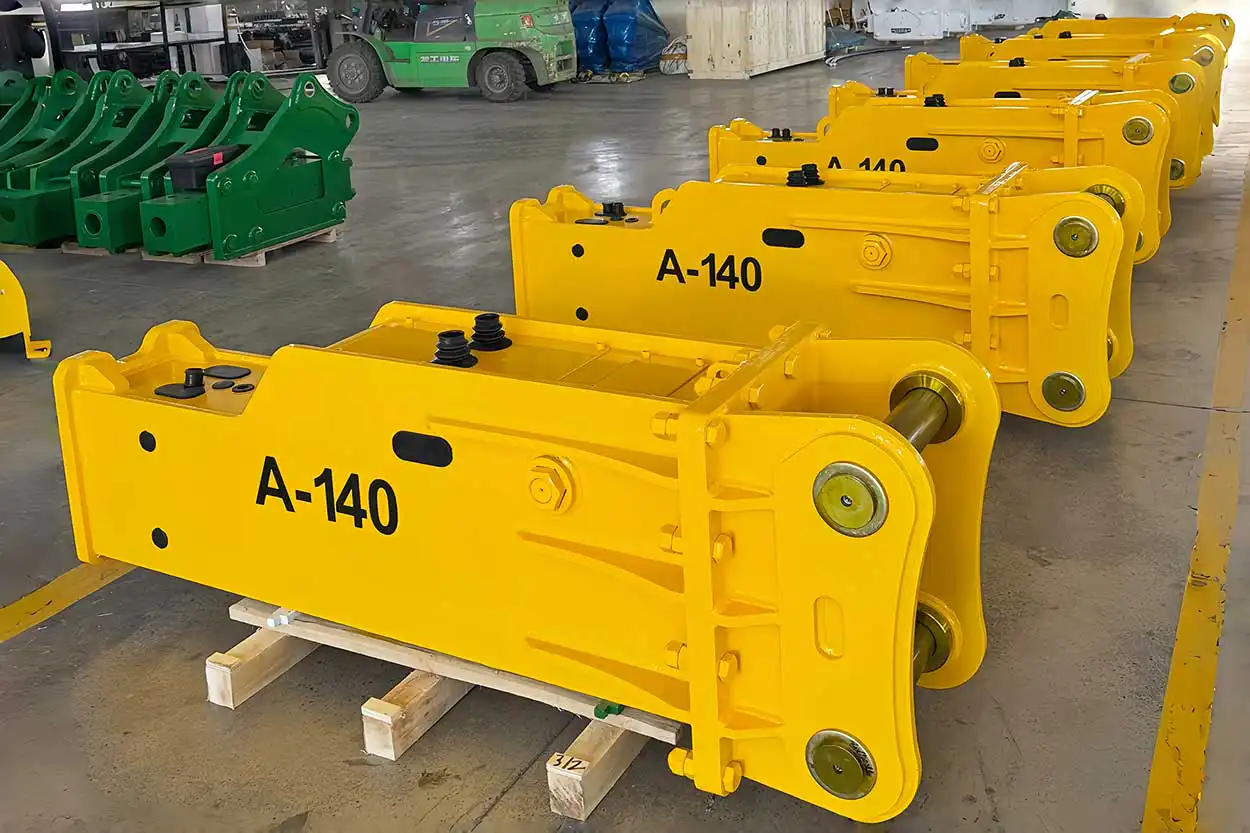

Malaysia · Subway Tunnel Secondary Excavation
Complex rock formations underground · Confined working space
- 14 hrs/day Continuous excavation schedule
- Reduced dust buildup, improved working conditions in confined spaces
- 35-ton class Carrier excavator
The dual control over noise and dust from the enclosed structure noticeably improved working conditions for personnel in the confined tunnel space, with no further work stoppages caused by excessive dust levels.
Real Projects Worldwide
Artus Delivers Tailor-Made Solutions Over 80 Countries
Our Box Type Hydraulic Breaker has already gone to work on real job sites across 80+ countries and regions.
- Projects span oil and gas infrastructure in the Middle East to urban renewal in Eastern Europe
- Real operating experience across desert, tropical, arctic, temperate, and high-altitude climates
- Global technical support responds within 24 hours, so the equipment is ready to perform on arrival
Every Unit, Engineered for Its Site
Behind every project above is a configuration tailored to local job conditions and the customer’s excavator model. Whatever brand of excavator a customer operates, the Artus team provides a matching mounting specification, along with company logo engraving and custom finish options, so equipment arrives site-ready and instantly recognizable as the customer’s own — backed by responsive support from the very first inquiry through delivery.
- Mounting specs matched to all major excavator brands
- Company logo and serial number engraving available
- Custom paint and finish options
Marcus Werner
Germany

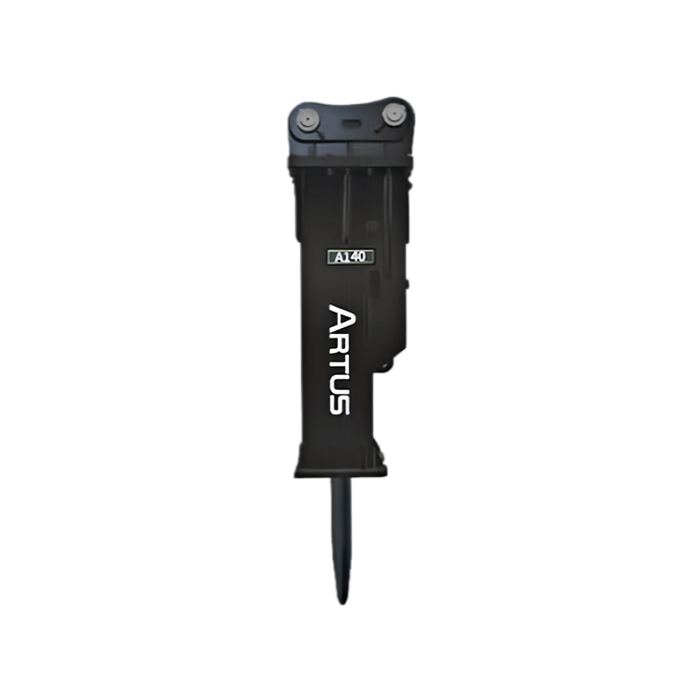

“We used the Artus 140B on a 25-ton excavator for an old town redevelopment project in Leipzig. Germany has strict noise limits for urban construction, especially near residential areas and historic buildings, with clear decibel caps even during daytime work hours. Our previous breaker kept drawing noise complaints from nearby residents, and we had to keep adjusting our work schedule around it, which pushed the timeline back again and again and put pressure on us from the property owner. After switching to Artus, we measured operating noise under 85 dB, which let us secure a nighttime work permit. The noise complaints that had been our biggest headache disappeared completely, and the whole project finished almost two weeks ahead of schedule. We were happy with how everything came together in the end.”
Aisha
Oman
“Our quarry runs in high temperatures most of the year, with heavy dust on top of that. Our old breaker’s seals needed replacing every three months, and each repair meant at least two or three days of downtime. Over a year, that added up to a real chunk of lost production time, and the parts costs never really came down. After switching to the Artus 175B, the seal system held up for nearly six months under the same conditions. Our maintenance cost per unit dropped noticeably, and the team stopped having to deal with constant breakdowns, so we could actually focus on output instead. It mounted directly onto our existing Hyundai excavator without any compatibility issues, and the technical support team was easy to work with on-site — no waiting around for parts or support that would have held up the job.”
Brands We Serve
We Offer Every Make and Model Hammer/Breaker
Switching to Artus shouldn’t mean rethinking your excavator fleet. Our breakers mount directly to factory specifications, with no extra modification step or added lead time. If your machine has a less common configuration, our engineering team can build a custom fit based on your exact dimensions, so every Artus breaker is ready to work the moment it arrives.
Genuine Quality Guaranteed
Artus Spare Parts For Hydraulic Breakers
How long your equipment stays in service often comes down to how fast parts can reach you. Artus keeps core wear components in stock year-round, shipping globally within 24–48 hours of order confirmation, so a missing seal kit or chisel never has to take your whole breaker offline. Every part is machined to genuine factory dimensions, fitting precisely regardless of which brand your breaker body comes from — eliminating the secondary failures that come from ill-fitting replacements.
Through Bolts
Front Bushing

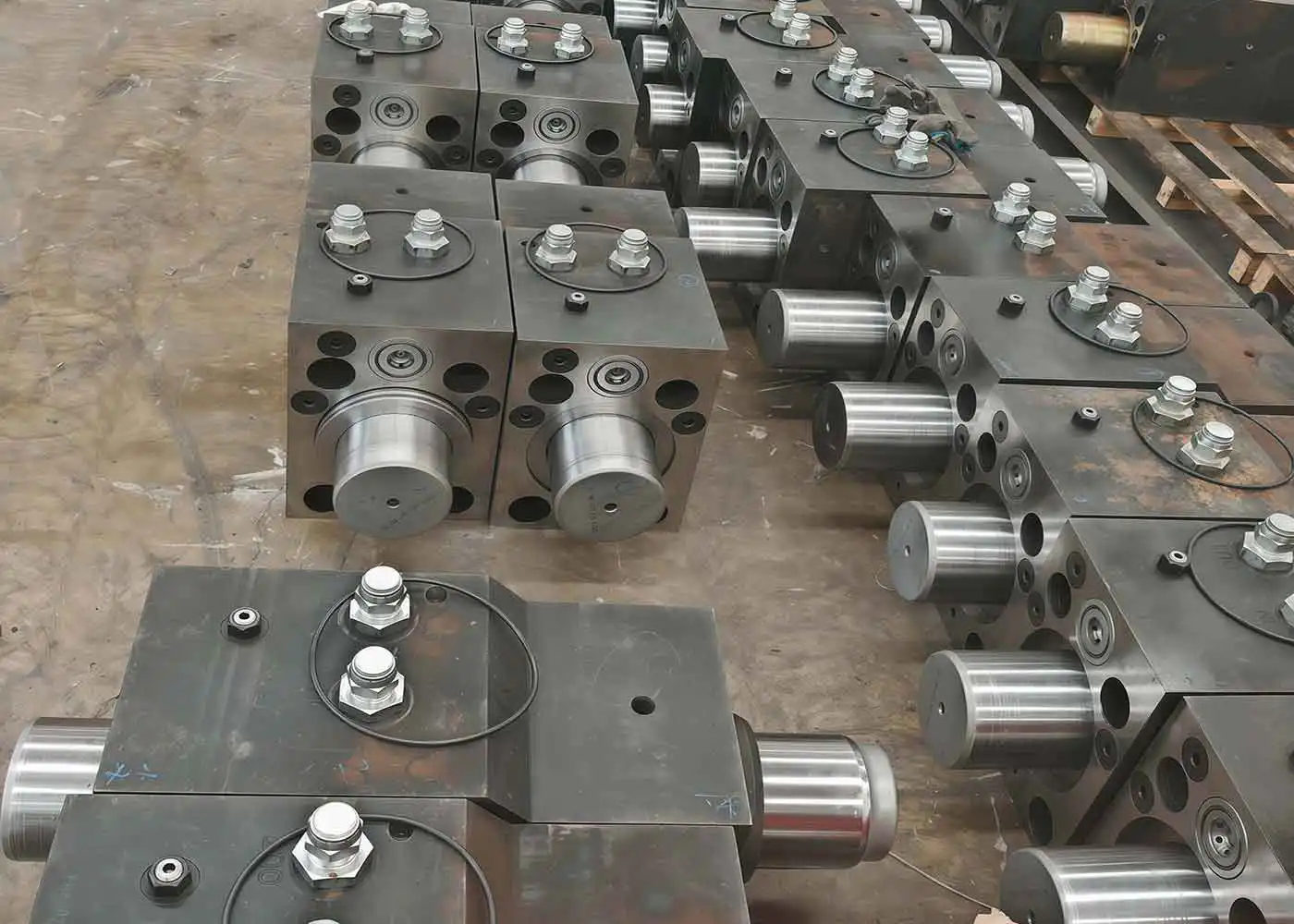

Cylinder Assy
Front Heads
Side Bolts
Inner Bush
Chisels
Pistons
Rod Pin
Diaphragm
Seals Kit
Back Head
